Why Isn't My White Ink Opaque Enough?

Quick answer: Weak white ink opacity is rarely one thing. The most common causes are not enough ink laid down to fully block the substrate, pigment that's settled out of suspension from poor circulation, a dark or textured surface that needs more coverage than a light one, or confusing what the white layer is actually supposed to do (block color underneath versus show as a finished white surface).

Diagnosing it means separating a formulation problem from a process problem, because they get fixed very differently.

White ink gets blamed for a lot of things that aren't really about the ink.

A print looks gray instead of white. Or the color underneath shows through in patches. Or opacity was fine on Monday and streaky by Thursday. Each of those can look like the same complaint, "the white isn't opaque enough," and each one usually has a different cause.

White pigment behaves differently than the pigments in color inks, and that difference is where most of these problems start.

White Ink Doesn't Sit in Suspension the Way Color Ink Does

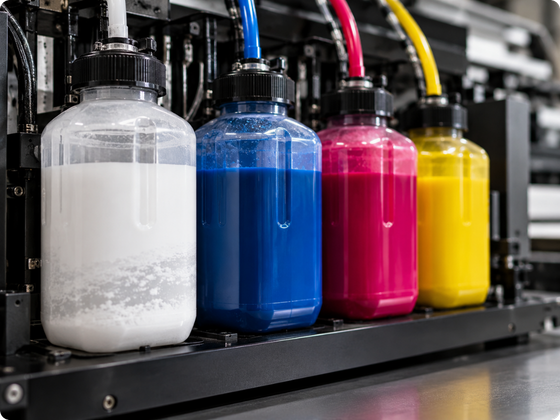

Titanium dioxide, the pigment that makes white ink white, is dense. It's heavier than the pigments used in cyan, magenta, yellow, or black, and left alone, it settles toward the bottom of a tank, a line, or a printhead reservoir faster than color ink does.

When that happens, the ink coming out of the printhead isn't the same ink that went into the tank. It's thinner on pigment than it should be, which means weaker opacity, even though nothing about the formulation changed. Circulation and agitation systems exist specifically to keep that pigment suspended and moving, and a white ink line without proper recirculation will drift toward inconsistent opacity over time, independent of anything the substrate or the print settings are doing.

This is why opacity problems that show up gradually, fine at the start of a run, weaker by the end, point toward a circulation issue before they point toward a formulation issue.

The Substrate Underneath Decides How Much White You Actually Need

A light gray plastic and a black anodized panel are not the same opacity job, even if someone printed both with the identical white ink and identical settings.

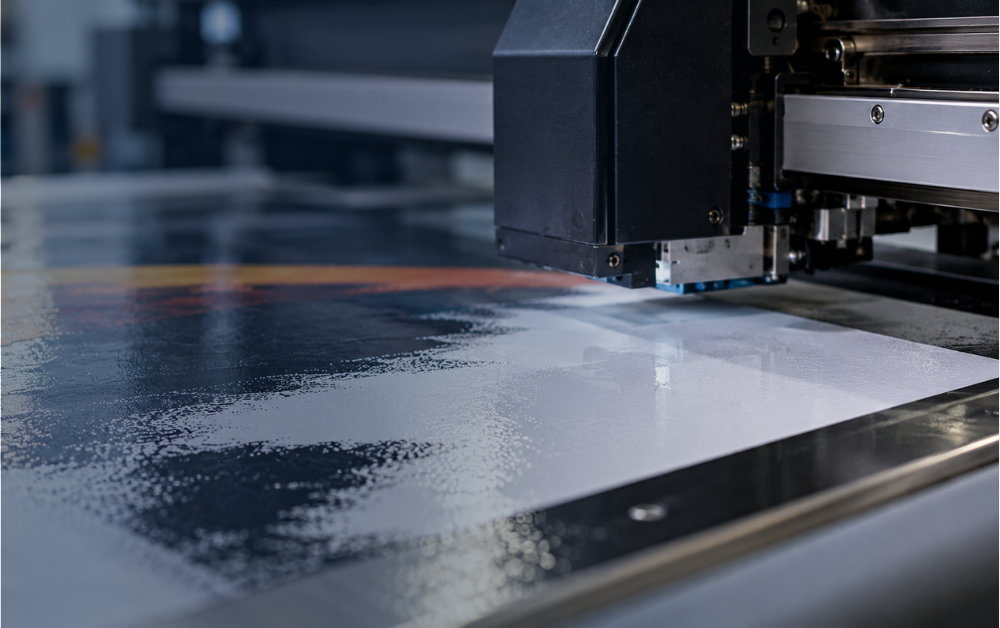

Darker substrates need more ink laid down to fully block what's underneath. Textured or porous surfaces can also work against opacity, since ink settling into texture behaves differently than ink sitting on a smooth, non-porous surface. A white that reads as fully opaque on a smooth white test panel can show visible substrate color through it on a textured black part, and that's not a contradiction. It's two different jobs.

Before troubleshooting the ink, it's worth confirming the test was actually run on something close to the real production substr, not a convenient stand-in.

One Pass Rarely Gives You True Opacity

A single, thin layer of white ink is often not enough to fully block a substrate, regardless of how good the pigment is.

Getting to real opacity usually means putting down enough ink film thickness to do the job, whether that's a heavier single pass or multiple passes stacked on top of each other. Print more layers, and opacity improves, up to a point. Print too many, and other problems show up: cure quality can suffer if the film gets too thick to cure evenly all the way through, and texture or gloss can start looking different than intended.

Finding the right laydown for a given substrate and ink combination is a real variable to test, not a single number that applies everywhere.

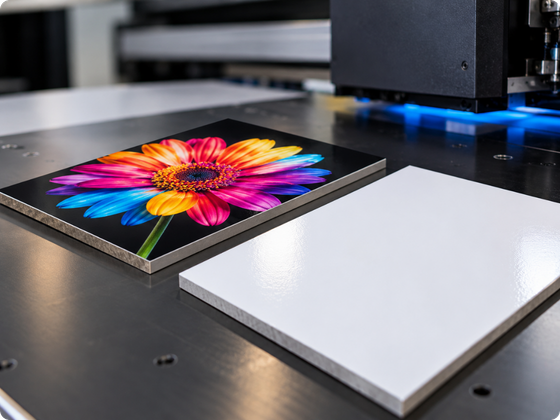

Underbase White and Visible White Aren't the Same Job

White ink gets used two different ways, and they have different requirements.

Sometimes white is an underbase, a layer printed first so that color printed on top of it looks vibrant and accurate on a dark or clear substrate instead of muddy or washed out. Here, opacity matters because it'sblocking what's underneath from interfering with the color layer above it.

Sometimes white is the visible finish itself, a printed white surface someone will actually look at directly. Here, uniformity, gloss consistency, and freedom from mottling or pinholing matter as much as raw opacity, because any unevenness is sitting right on the surface where it can be seen.

A white layer built to do one of these jobs well won't automatically satisfy the other. Confusing the two is a common reason a print "looks fine" to the person who approved the underbase and "looks wrong" to the person judging it as a finished white.

Diagnosing an Opacity Problem

Start with the substrate, not the ink. Confirm the actual color, texture, and porosity of the real production part, since testing on the wrong stand-in gives a false read either way.

From there, check whether the ink has been properly circulated and agitated before assuming a formulation problem. Settled pigment produces exactly the kind of gradual, inconsistent opacity that gets misread as a bad batch of ink.

Then look at film thickness and pass count. A print that's technically laying down too little ink will never reach full opacity no matter how good the pigment is.

Check the printhead itself. A partially clogged nozzle can produce streaking or banding that looks like an opacity problem but is actually a print-quality problem with a completely different fix.

And confirm what job the white layer is actually supposed to do. An underbase and a visible white finish get evaluated against different standards, and holding one to the other's bar produces a result that looks like a failure when it isn't.

When to Slow Down

Slow down and test more carefully when the substrate is significantly darker, more textured, or more porous than whatever the ink was last validated on. When opacity needs to hold up over a long production run, not just look right on the first few parts.

When the white layer will be visible directly rather than hidden under color. When backlit or double-sided visibility is part of the requirement, since that's a different opacity target than a print viewed only from the front. And when a printer's white ink circulation system hasn't been checked or maintained recently.

None of these mean the job can't work. They mean the testing needs to match the actual requirement instead of a generic pass or fail.

Working Through a White Ink Problem?

Opacity issues are diagnosable, but they take separating the ink from the process from the substrate before assuming which one is at fault.

Frequently Asked Questions

Why does my white ink look gray instead of white?

A few common causes: not enough ink laid down to fully block the substrate underneath, settled pigment from poor circulation reducing the effective pigment concentration coming out of the printhead, or a substrate that's darker or more absorbent than whatever the ink was tested against.

Why was opacity fine at the start of a run and weaker by the end?

That pattern points toward pigment settling in the ink line or printhead reservoir rather than a formulation problem. Titanium dioxide is dense and settles out of suspension faster than color pigments do, which is why white ink lines need reliable circulation and agitation.

Does printing more layers of white always fix opacity?

Up to a point. More ink film thickness generally improves opacity, but too much can create its own problems, including uneven cure through a thicker film and changes to gloss or texture. The right laydown is a real variable to test for a specific substrate and ink combination, not a fixed number.

Is an underbase white supposed to look the same as a visible white finish?

No. An underbase is judged on whether it blocks the substrate well enough for color printed on top to look accurate. A visible white finish is judged on uniformity, gloss, and freedom from mottling, since it's the surface someone is actually looking at. The same white layer can pass one standard and fail the other.
